MB102 830-Point Breadboard
Full-size 830-point breadboard for building and testing circuits without soldering. Two power rails on each side, fits DIP chips across the centre gap and all Arduino-style jumper wires.
- Tie Points
- 830 (630 + 200)
- Power Rails
- 4 (2 per side)
- Wire Size
- 20–29 AWG
- Pitch
- 2.54 mm
- Backing
- Self-adhesive
- Size
- 165 × 55 × 10 mm
₹0.00
( Include all taxes )1
7 Days Return
Cash On Delivery
Safe & Secure
Specifications
- Manufacturer Part Number
- MB-102
- Tie Points
- 830 (630 + 200)
- Power Rails
- 4 (2 per side)
- Wire Size
- 20–29 AWG
- Pitch
- 2.54 mm
- Backing
- Self-adhesive
- Size
- 165 × 55 × 10 mm
- Material
- ABS body, phosphor-bronze clips
Description

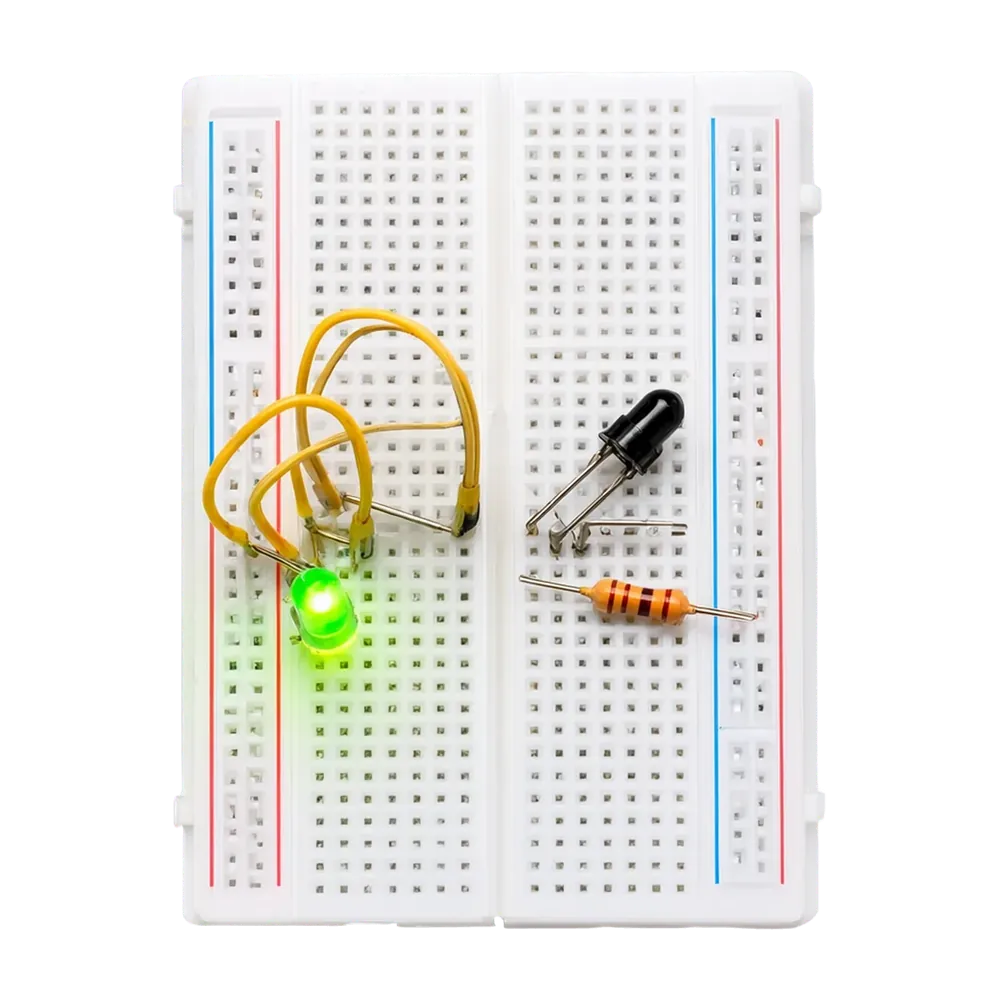

The workspace for every prototype. Push components and jumper wires into the holes – spring clips inside hold them and connect the rows. When you're done, pull everything out and reuse it.
Features
- 830 tie points: 630 in the main area + 200 in the power rails
- Two power rails (+ / −) along each long side
- Centre channel fits DIP ICs
- Accepts 20–29 AWG wire and component leads
- Self-adhesive foam back; interlocks with other MB102 boards
- Fits the MB102 breadboard power-supply module
Good to know
On many full-size boards the power rails are split in the middle – look for a gap in the red/blue line and bridge it with a short wire if needed.
Package includes
1 × 830-point breadboard
