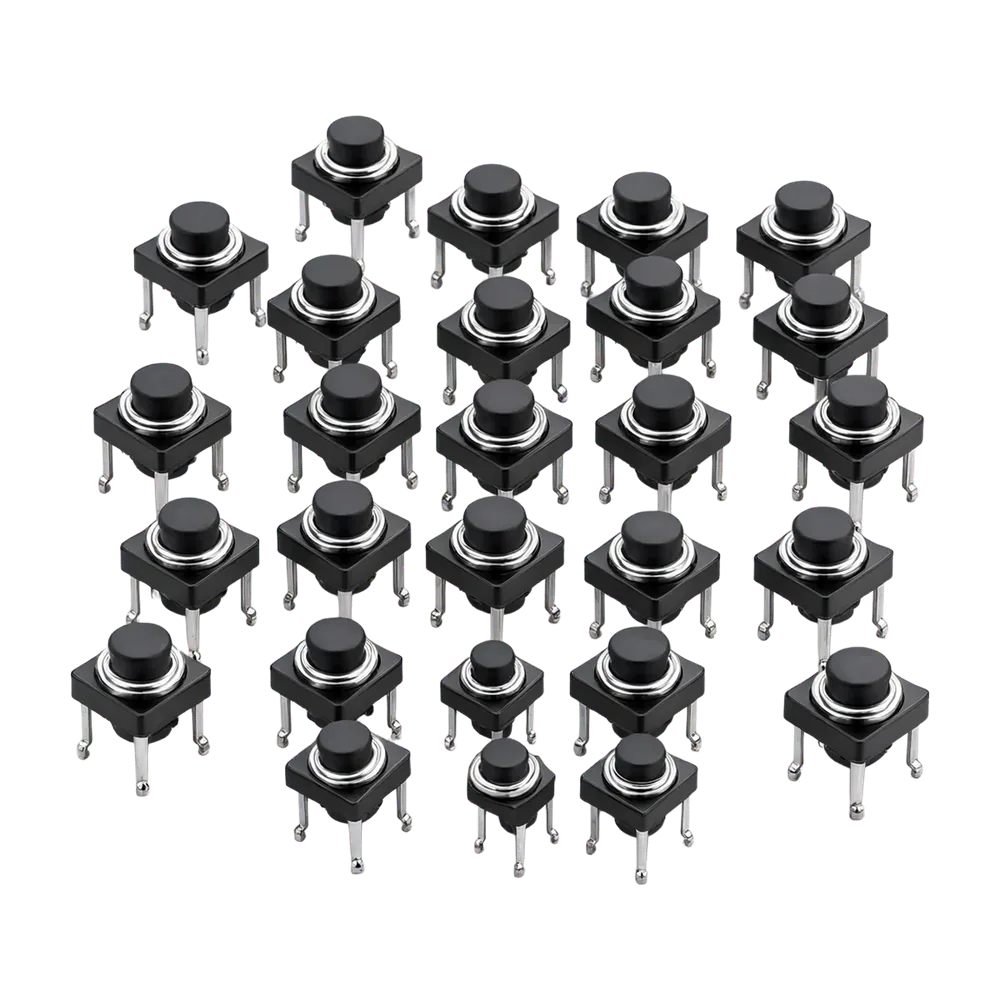

Tactile Push Button 6x6 – Pack of 20
Standard 6 × 6 mm momentary push buttons for breadboards and PCBs. Use them as reset buttons, inputs, menu keys and game controls.
- Size
- 6 × 6 × 5 mm
- Type
- Momentary, SPST-NO
- Pins
- 4 (THT/DIP)
- Rating
- 12 V DC, 50 mA
- Operating Force
- About 160 gf
- Life
- About 100,000 cycles
₹0.00
( Include all taxes )1
7 Days Return
Cash On Delivery
Safe & Secure
Specifications
- Size
- 6 × 6 × 5 mm
- Type
- Momentary, SPST-NO
- Pins
- 4 (THT/DIP)
- Rating
- 12 V DC, 50 mA
- Operating Force
- About 160 gf
- Life
- About 100,000 cycles
- Pack Quantity
- 20
Description
The small clicky button found on almost every development board. It closes the circuit only while pressed and springs back when released.
Features
- 6 × 6 mm body, 5 mm height
- Momentary, normally open (SPST-NO)
- 4 pins; each pair on the same side is connected internally
- Rated 12 V DC, 50 mA
- Life about 100,000 presses
- Fits breadboards and 2.54 mm PCBs (straddle the centre gap)
How to connect
Connect one side to a digital pin set as INPUT_PULLUP and the other to GND – the pin reads LOW when pressed. No extra resistor needed.
Package includes
20 × tactile switches
