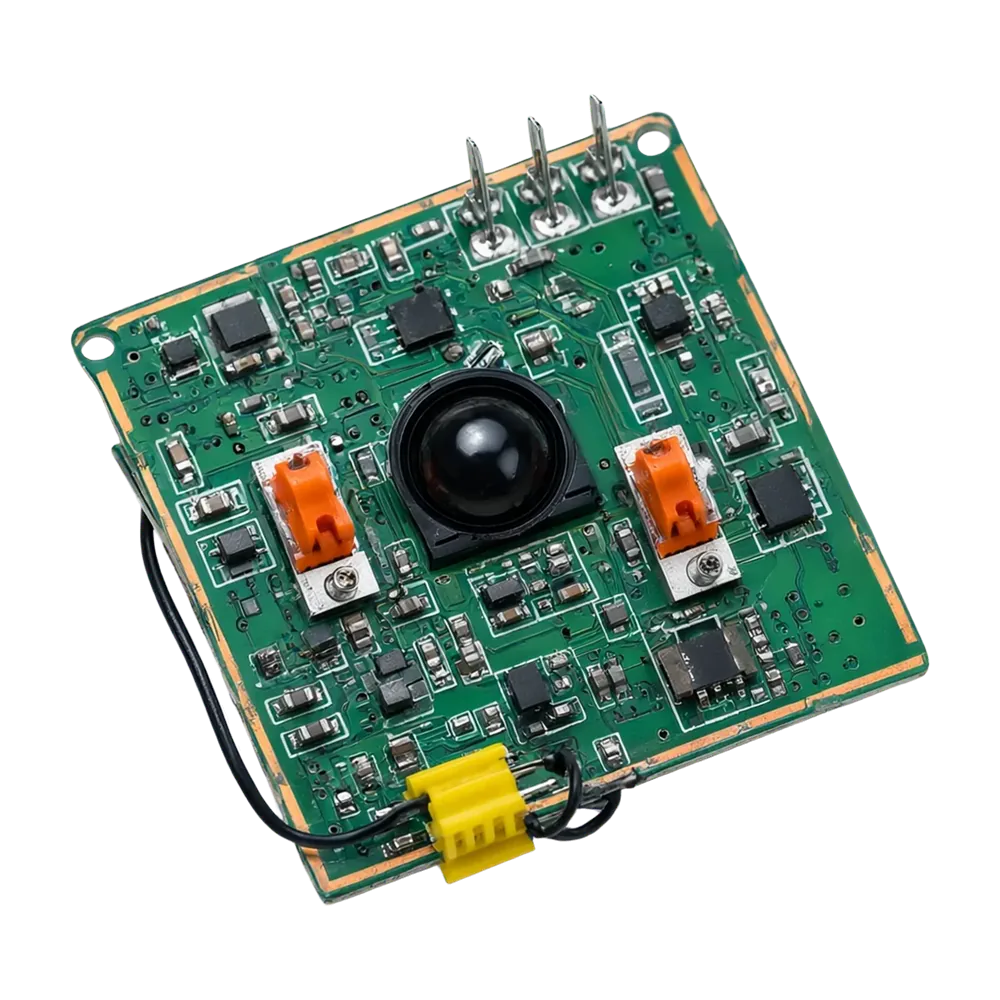

HC-SR501 PIR Motion Sensor Module
Passive infrared (PIR) motion sensor that detects people up to about 7 m away. Two trimpots set range and on-time – use it for automatic lights, alarms and presence detection.
- Sensor Type
- Pyroelectric infrared (PIR)
- Supply Voltage
- 4.5–20 V DC
- Output
- Digital, 3.3 V HIGH / 0 V LOW
- Detection Range
- Up to about 7 m (adjustable)
- Detection Angle
- About 110°
- Delay Time
- About 3 s – 5 min (adjustable)
₹0.00
( Include all taxes )1
7 Days Return
Cash On Delivery
Safe & Secure
Specifications
- Manufacturer Part Number
- HC-SR501
- Sensor Type
- Pyroelectric infrared (PIR)
- Supply Voltage
- 4.5–20 V DC
- Output
- Digital, 3.3 V HIGH / 0 V LOW
- Detection Range
- Up to about 7 m (adjustable)
- Detection Angle
- About 110°
- Delay Time
- About 3 s – 5 min (adjustable)
- Trigger Modes
- Single (L) / Repeat (H)
- Warm-up Time
- 30–60 s
- Board Size
- 32 × 24 mm
Description
The HC-SR501 senses the body heat of a moving person and switches its output HIGH. It works on its own (drive a relay module directly) or with any microcontroller as a simple digital input.
Features
- Detection range adjustable, up to about 7 m, 110° cone
- Output ON time adjustable from about 3 s to 5 min
- Jumper for single trigger (L) or repeat trigger (H)
- Supply 4.5–20 V; digital output 3.3 V HIGH – safe for ESP32 and Raspberry Pi
- Very low standby current
Good to know
After power-up the sensor needs about 30–60 seconds to settle, and may trigger once or twice during that time. Keep it away from heaters, air-conditioner vents and direct sunlight.
Package includes

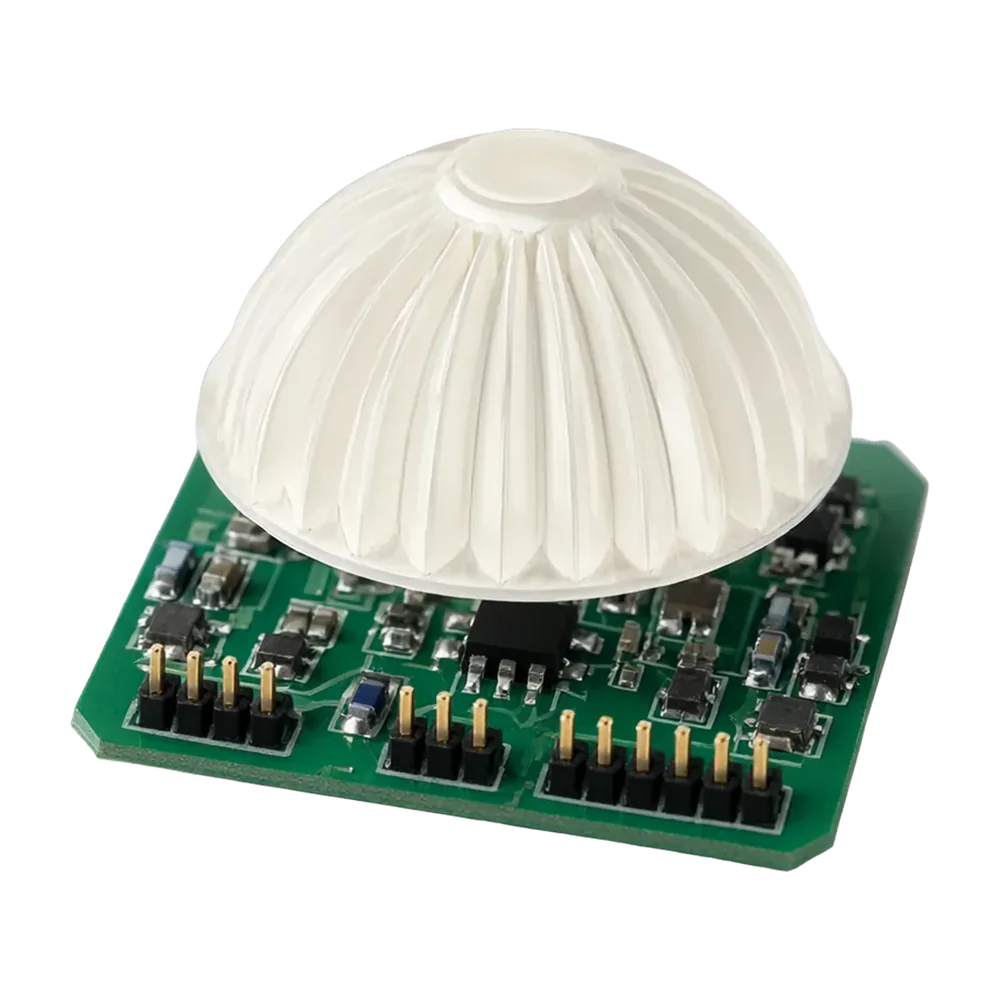

1 × HC-SR501 PIR sensor with Fresnel lens
